Download programa u MC-2000, MC-600, MC-504 i MC-904

Pomoću SILICON adaptera

• dovući i instalirati softver za adapter za programiranje, ili sa diska

• postaviti SILICON LABORATORIES ADAPTER povezan sa PC-em

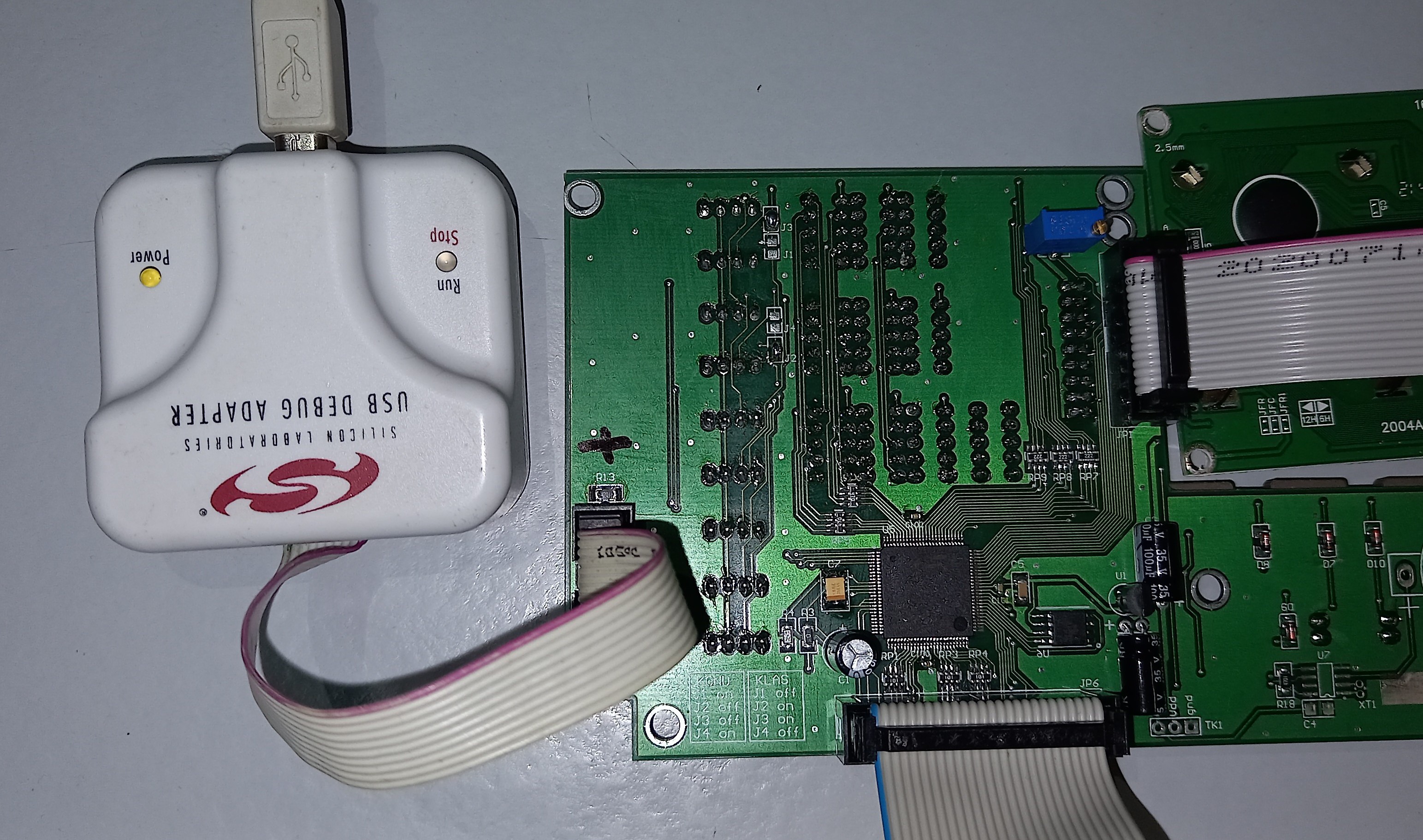

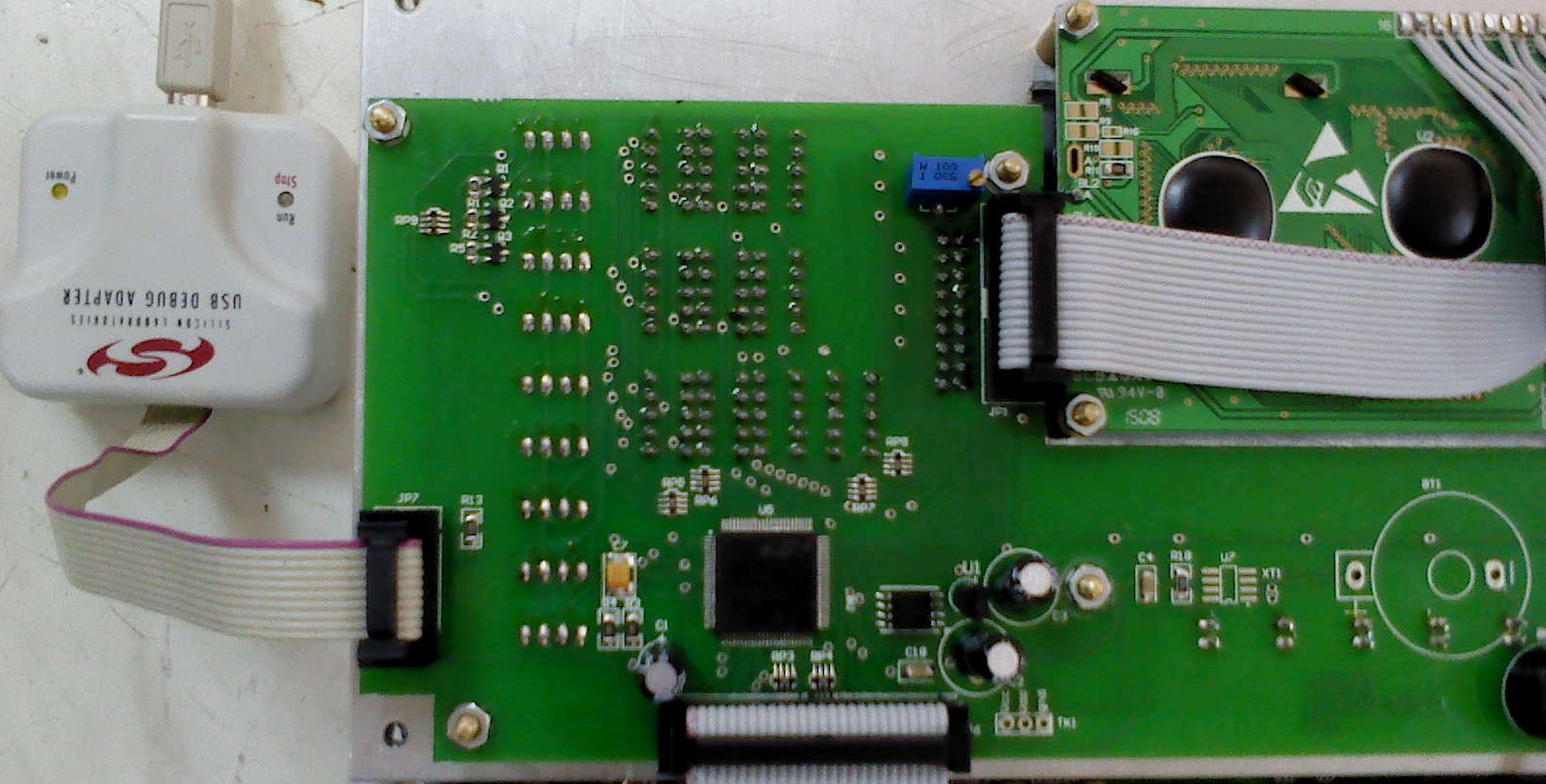

  JP3 na ploči MC2000_CPU_Vx.x	JP7 na ploči MC600_CPU_Vx.x	JP7 na ploči MC904_CPU_Vxx

• dovesti napajanje 220VAC.

• pokrenuti Flash Programming Utility (START > Elektronika > Silicon Laboratories > FLASH Programming Utility)

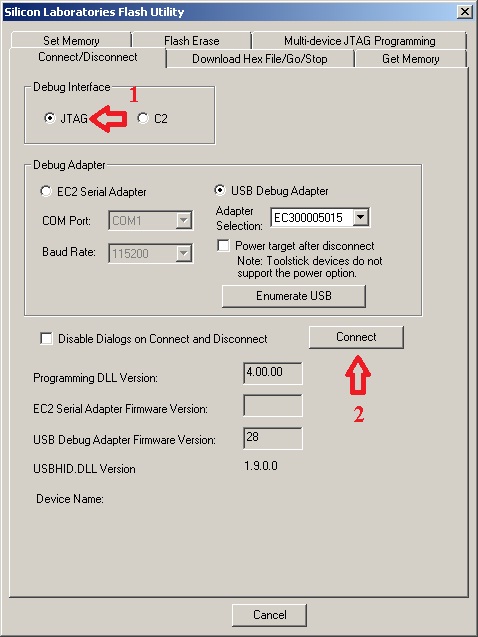

  • Tab - Connect/Disconnect

    • Debug Interface - JTAG

    • Connect

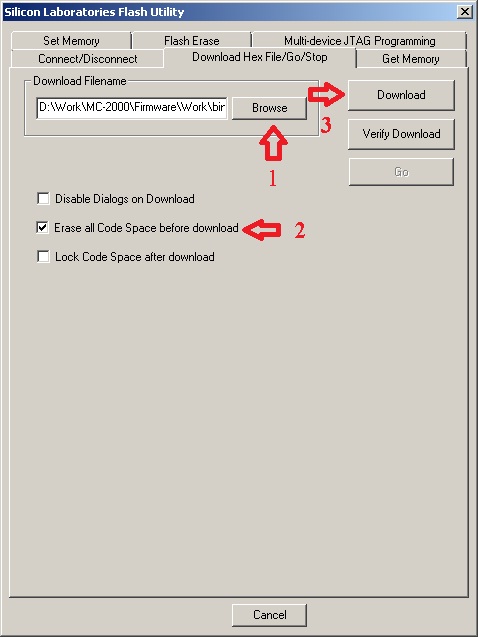

  • Tab - Download Hex File/Go/Stop

    • Download Filename:

    • Checkirati - Erase all Code Space before download

    • Download

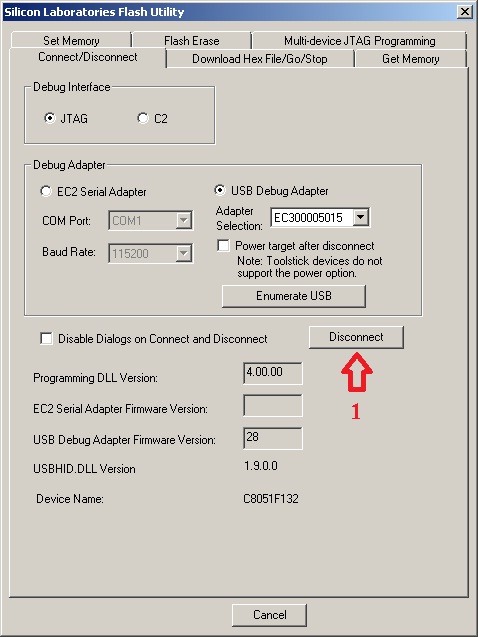

  • Tab - Connect/Disconnect

    • Disconnect



• isključiti napajanje

• raskonektovati SILICON ADAPTER
