For automatics that have the possibility of measuring the temperature in the wood, they can monitor process of thermal treatment of wood and make a report. In this case, thermal treatment defines the required temperature in the wood for a given period. The temperature inside wood is measured in four measuring points. Thermal treatment can be performed during the drying process or independently of the drying, as a single process. If performed during the drying process, it is necessary that the regime is such that it can provide the required temperature in the chamber for conducting thermal processes. If the runs independently, it is necessary to set up a semi-automatic mode on automatics and set the desired temperature, and drying and sprinkles have to be closed and switched off.

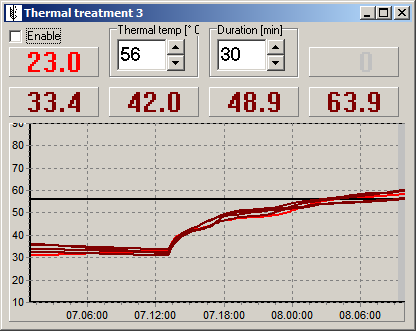

Invoking this option, opens following window.
By checking Enable, measuring starts and also writing down of temperatures in the wood in the currently active tour of drying. In the writable field Temperature it is necessary to specify the temperature of thermal treatment. In the writable field Duration set the duration of treatment. The first field on the left shows the air temperature and four fields below showing the temperature inside wood by probes 1 to 4. When all four probes reach of treatment temperature, begins with a countdown time required. If for required period all temperatures are greater than the required required temperature, the treatment process is finished. If inside this period, any of the temperature drops below the required, required time for treatment restarts. Outside of treatment period data are stored for 30 minutes, and during the treatment period data are storing every 30 seconds.
Double left click on the measured temperature opens a dialog for selecting colors in diagram.

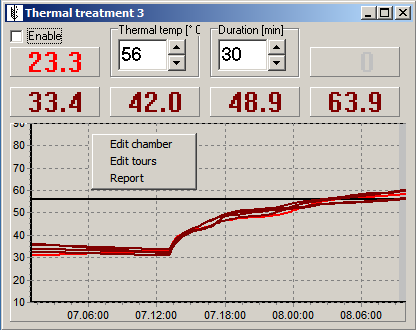

Right click on the thermal treatment windows opens advanced settings menu.
Edit chamber - setup information of the chamber
Edit tours - setup information about treatment
Report - display and print completed treatments

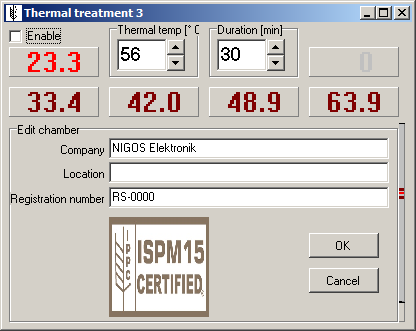

Edit chamber
Company - name of company that doing thermal treatment
Location - address and optional description of chamber where does the treatment
Registration number - is obtained from the competent ministry
Double left click on the image (logo) opens a dialog for selecting a user image from disk.

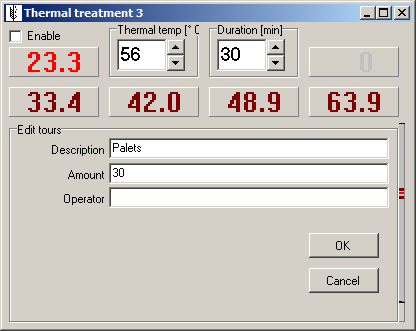

Edit tours
Description - information of material to be treated
Amount - information of amount of material
Operator - personal ID of thermal treatment operator

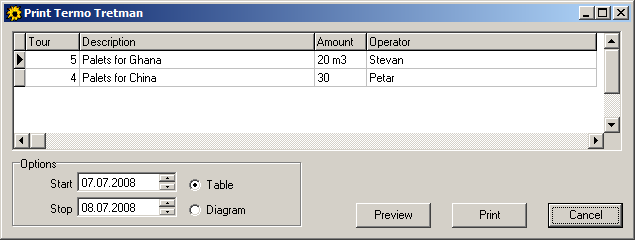

Report
Opens list of completed treatments. By left click on single treatment opens it. By selecting treatment, in Options field can be selected date of begining and date of end of treatment.
Table - tablatural displaying of data about thermal treatment
Diagram - graphic displaying of data about thermal treatment
Preview - preview report before printing
Print - report printing
Cancel - close this window
